ULTRAHOOK Winch Hook With Shackle Mount

PRODUCT DESCRIPTION
The world’s safest winch hook.

Featuring Industry first Closed System Shackle Mount hole machined into the body of the hook, safety latch retraction pocket resulting in a clear throat opening, integrated secondary safety latch locking feature-latch locking pin stored in the body of the UltraHook which can be removed and inserted in to the hook tip, locking the latch into place.

EPDM rubber pads for fairlead protection, titanium double shear pin, and a finger grip feature that promotes proper “Hook Up” orientation.

The first winch hook that can be stored against your fairlead protecting either your hawse or roller style fairlead from a metal to metal connection.

Made in USA

US Utility Patent No. 10,202,260 – Combination Hook/Shackle mount (Factor 55 UltraHook Product), PCT – PCT/US2016/059764
Europe – 16794489.1
Australia – 2016344016
China – 2016800732172

PRODUCT SPECIFICATIONS

The industry’s first winch hook with an integrated shackle pin mount

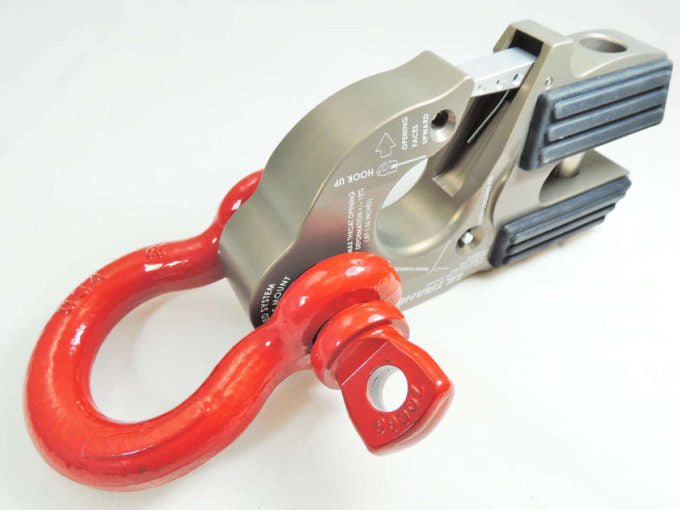

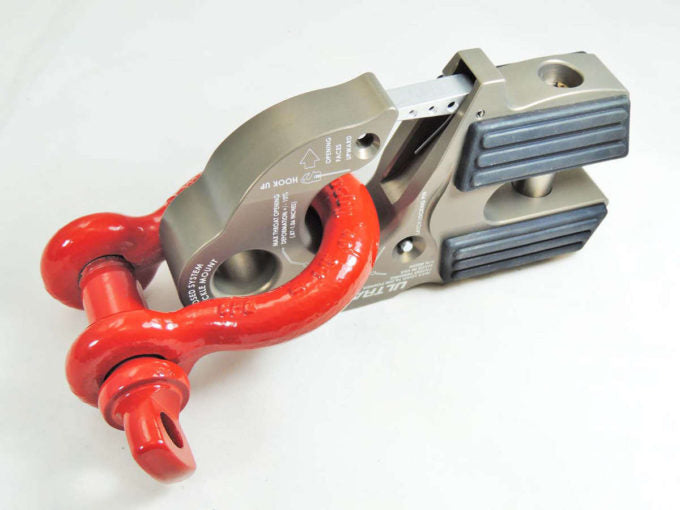

Two methods of use: conventional hook opening, or shackle mount
Shackle pin mount allows the safer practice of Closed System Winching
Finger grip feature promotes proper “Hook Up” orientation
Double locking safety clasp – lock the safety clasp with the included clevis pin

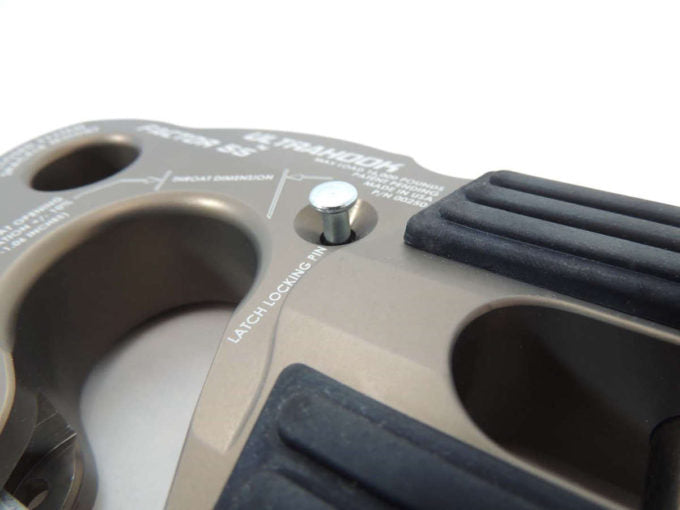

Latch lock clevis pin stored conveniently in hook body
Integrated EPDM rubber pads for fairlead surface protection

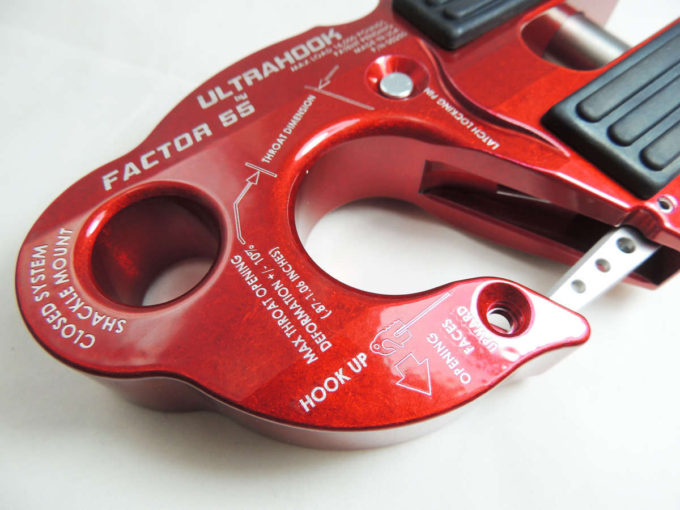

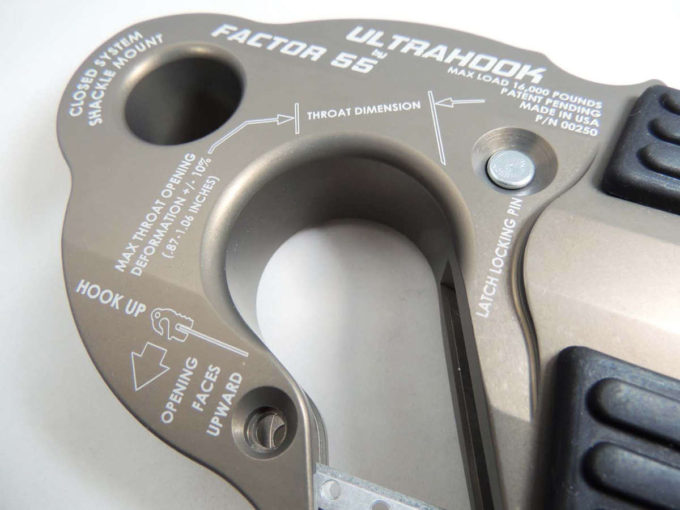

Max opening deformation clearly laser engraved
Lightweight – Precision CNC machined 7000 series Military Grade Aluminum
No rope splicing required – double shear pin design accepts rope/cable eyes
Designed for both steel cables and synthetic winch ropes

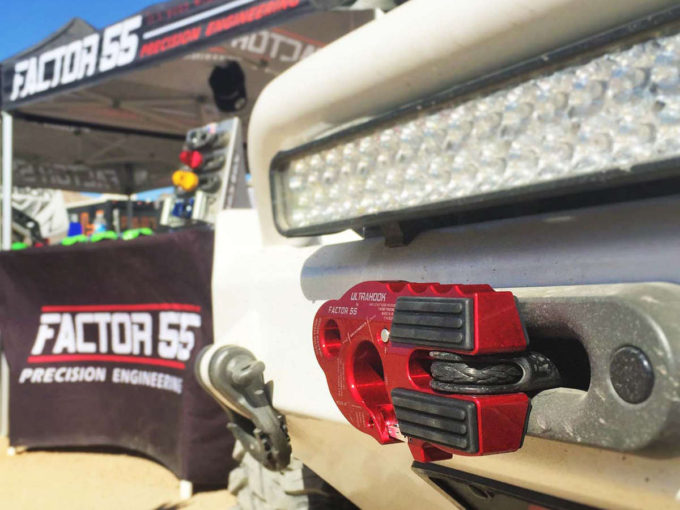

Foldable to stow rattle free against fairleads
Shackle pin mounting hole accepts ¾ shackle pins (.875” diameter)
For rope and cable diameters up to 3/8’’
Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
5/8” diameter 6AI-4V grade V titanium double shear pin
Max Rated Load: 16,000 pounds
Ultimate Strength – Hook Throat Opening: 31,000 pounds
Ultimate Strength – Shackle Pin Mount: 48,000 pounds
Weight: 32oz
MADE IN THE USA
